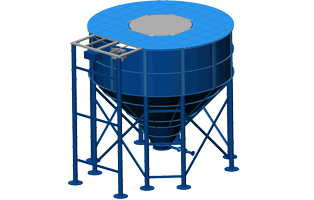

Deep Cone Thickener

LZZG deep cone thickener promoted the structure of internal feed tube on the basis of traditional vertical flow sedimentation tank,optimized flocculation and deep solids compression provide paste consistency underflow and higher process rates, which greatly increase settling efficiency.

The deep cone thickener is circular, suspended solids settle down into bottom conical sludge tank by gravity, clear water flow away from overflow port around the upper tank, which is also called paste thickener. The port of the overflow  is equipped with filter and baffle, which improve the water quality that poured out.

Working principle


LZZG thickener is a thickener tank that based on gravity and sedimentation which makes solidseparate from liquid well. The concentration of pulp waste water could be enhanced from 2% ~ 15% to 60%~ 70% by the paste thickener, the clear water is overflow from the upper part of the paste thickener , so as to achieve the purpose of sewage purification, solid-liquid separation and maximum water recovery.

Technology Advantages

1. Automatic cleaning, automatic discharge slurry, solve manual operation;
2. Adopting the working principle of suspension filtration, media adsorption and settling, no purification membrane, no wearing parts;
3. Made of qualified carbon steel (or stainless steel, epoxy glass fiber reinforced plastic, etc.), with good strength and corrosion resistance;
4. Low flocculant using cost, big capacity, high efficiency, stable performance;
5. Small volume, small floor space, easy installation;
6. Service life is 10-15 years, low investment, remarkable economic benefit.
7. The purified water can totally reach to national standard of discharge and can be recycled.

Specifications

Model Capacity (t/h) Tank Height (mm) Volume (m³) Overall Size (mm)
S3040 <50 φ3000X4000 35 φ3000X8860
S3060 50-100 φ3000X6000 50 φ3000X10860
S6030 100-150 φ6000X3000 100 φ6000X9400
S6040 150-200 φ6000X4000 130 φ6000X10400
S6050 200-250 φ6000X5000 160 φ6000X11400
S6060 250-300 φ6000X6000 190 φ6000X12400
S8045 350-400 φ8000X4500 260 φ8000X10600
S8060 400-500 φ8000X6000 300 φ8000X12100
